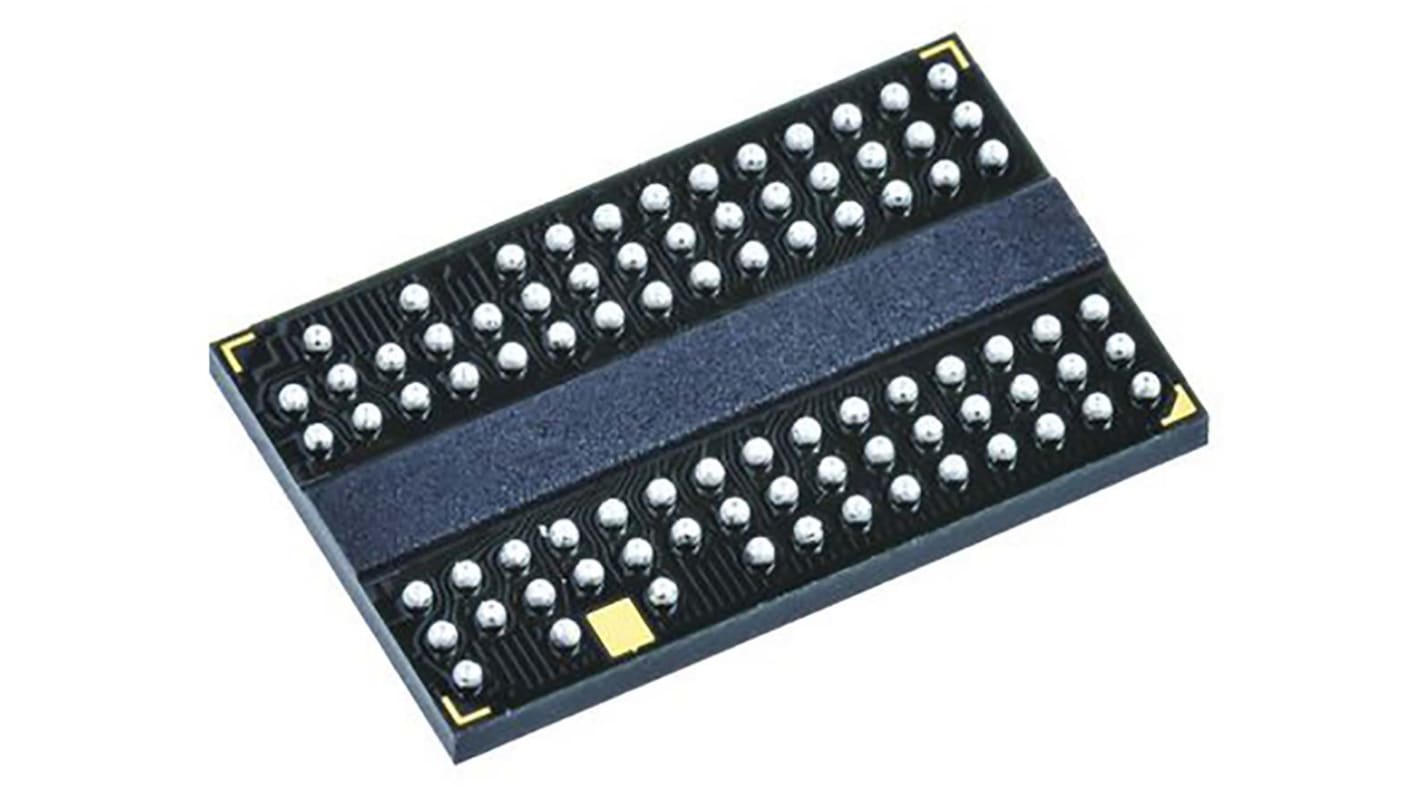

SDRAM W9725G6KB25I, 256Mbit, Montaje superficial, WBGA, 84 pines

  • Código RS 188-2583
  • Referência do fabricante W9725G6KB25I
  • Fabricante Winbond
Documentação Técnica
Legislação e Conformidade
Declaração de conformidade RoHS
Detalhes do produto

The W9725G6KB is a 256M bits DDR2 SDRAM, and speed involving -18, -25, 25I and -3.

Double Data Rate architecture: two data transfers per clock cycle
CAS Latency: 3, 4, 5, 6 and 7
Burst Length: 4 and 8
Bi-directional, differential data strobes (DQS and /DQS ) are transmitted / received with data
Edge-aligned with Read data and center-aligned with Write data
DLL aligns DQ and DQS transitions with clock
Differential clock inputs (CLK and /CLK)
Data masks (DM) for write data
Commands entered on each positive CLK edge, data and data mask are referenced to both edges of /DQS
Posted /CAS programmable additive latency supported to make command and data bus efficiency
Read Latency = Additive Latency plus CAS Latency (RL = AL + CL)
Off-Chip-Driver impedance adjustment (OCD) and On-Die-Termination (ODT) for better signal quality
Auto-precharge operation for read and write bursts
Auto Refresh and Self Refresh modes
Precharged Power Down and Active Power Down
Write Data Mask
Write Latency = Read Latency - 1 (WL = RL - 1)
Interface: SSTL_18

Especificações
Atributo Valor
Tamaño de la Memoria 256Mbit
Organización 32M x 8 bit
Número de Bits de Palabra 8bit
Número de Palabras 32M
Tipo de Montaje Montaje superficial
Tipo de Encapsulado WBGA
Conteo de Pines 84
Dimensiones 12.6 x 8.1 x 0.6mm
Altura 0.6mm
Longitud 12.6mm
Temperatura de Funcionamiento Mínima -40 °C
Tensión de Alimentación Máxima de Funcionamiento 1.9 V
Temperatura Máxima de Funcionamiento +95 °C
Tensión de Alimentación de Funcionamiento Mínima 1.7 V
Ancho 8.1mm
Temporariamente fora de stock. Disponível a 15/02/2021, com entrega em 2 dia(s) útil(eis).
Preço unitário (Em tabuleiro de 209)
2,162
(IVA exc.)
unidades
Por unidade
Por Tabuleiro*
209 +
2,162 €
451,858 €
*preço indicativo
