Sensor de visión Microscan 7412-1000-2103, LED Rojo Ethernet, Monocromo, Enfoque automático, 150 mA, 24 V dc
- Código RS:
- 176-9339
- Referência do fabricante:
- 7412-1000-2103
- Fabricante:
- Microscan
De momento não é possível confirmar a disponibilidade de stock online. Por favor, entre em contacto connosco: 800 102 037
Adicionado
Preço unitário
4 090,80 €
| Unidades | Por unidade |
| 1 + | 4 090,80 € |
- Código RS:
- 176-9339
- Referência do fabricante:
- 7412-1000-2103
- Fabricante:
- Microscan
Documentação Técnica
Legislação e Conformidade
- COO (País de Origem):
- US
Detalhes do produto

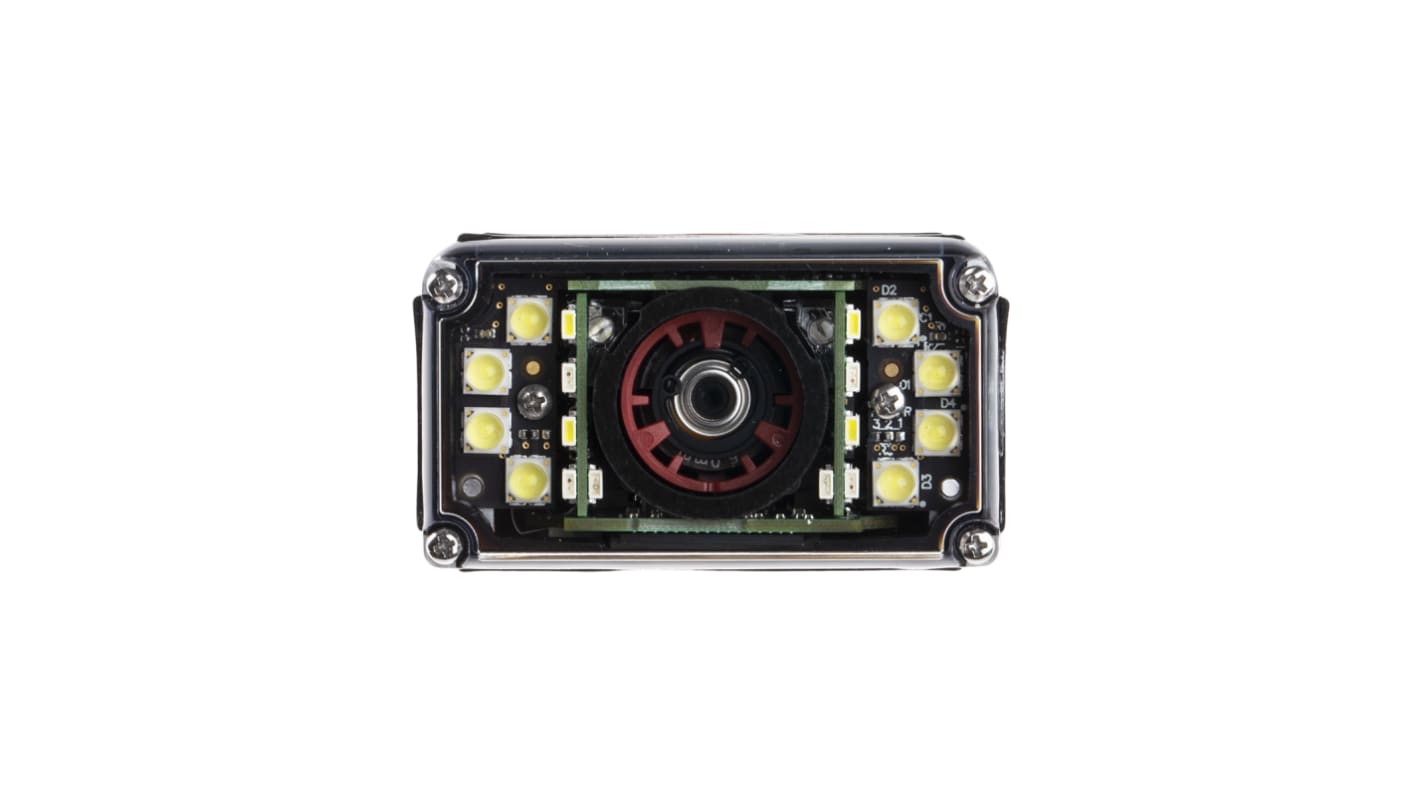

Microscan Bar code reader
The Microscan 150mA 30VDC bar code reader is a rugged and ultra-compact size device. The ID-40 has best-in-class decoding for 1D/2D or DPM codes and is a complete package for solving barcode reading challenges under any condition. This sets a benchmark as the ultimate compact imager in the industry. It has a 2GB non-volatile flash memory and 256MB RAM.
Features and Benefits
• AutoVISION sensor, AutoVISION, Visionscape software
• Compact in dimension 25mmx45mmx45mm
• Ethernet/IP, Ethernet TCP/IP, PROFINET I/O and RS 232 communication
• High-speed Ethernet serial
• Integrated targeting and read/pass indicators
• M12 12-pin power and M12 8-pin Ethernet connector
• Operating temperature ranges between 0°C and 45°C
• Optional liquid lens autofocus
• Reading distance ranges between 50mm and 300mm
• TRIG, PASS, FAIL, MODE, LINK and PWR LEDs indicators on case
• Ultra-small form factor
• WebLink browser-based setup interface
• X-Mode advanced decoding algorithms
• Compact in dimension 25mmx45mmx45mm
• Ethernet/IP, Ethernet TCP/IP, PROFINET I/O and RS 232 communication
• High-speed Ethernet serial
• Integrated targeting and read/pass indicators
• M12 12-pin power and M12 8-pin Ethernet connector
• Operating temperature ranges between 0°C and 45°C
• Optional liquid lens autofocus
• Reading distance ranges between 50mm and 300mm
• TRIG, PASS, FAIL, MODE, LINK and PWR LEDs indicators on case
• Ultra-small form factor
• WebLink browser-based setup interface
• X-Mode advanced decoding algorithms
Applications
• Aerospace
• Automotive
• Electronics
• Life sciences
• Packaging
• Automotive
• Electronics
• Life sciences
• Packaging
Certifications
• CE certified
• EN 55022:2010
• FCC
• IP65 rated
• IP67 rated
• QMS
• UL listed
• EN 55022:2010
• FCC
• IP65 rated
• IP67 rated
• QMS
• UL listed
Especificações
Atributo | Valor |
|---|---|
| Fuente de la luz | LED Rojo |
| Tipo de Color de Visión | Monocromo |
| Rango de Detección | Enfoque automático |
| Resolución | 1.280 x 960 píxeles |
| Tensión de Alimentación | 24 V dc |
| Corriente Máxima | 150 mA |
| Modelo | MicroHAWK MV-40 |
| Interfaz | Ethernet |
| Índice de Protección IP | IP65, IP67 |
| Temperatura de Funcionamiento Mínima | 0°C |
| Temperatura de Funcionamiento Máxima | +45°C |
