Placa de evaluación STMicroelectronics 60 LED (6 x 10) Cost-Effective Matrix Display - STEVAL-LLL005V1
- Código RS:
- 182-7784
- Referência do fabricante:
- STEVAL-LLL005V1
- Fabricante:
- STMicroelectronics
2 Disponível para entrega em 24/48 horas
Adicionado
Preço unitário
48,95 €
Unidades | Por unidade |
1 + | 48,95 € |
- Código RS:
- 182-7784
- Referência do fabricante:
- STEVAL-LLL005V1
- Fabricante:
- STMicroelectronics
Documentação Técnica
Legislação e Conformidade
- COO (País de Origem):
- IT
Detalhes do produto

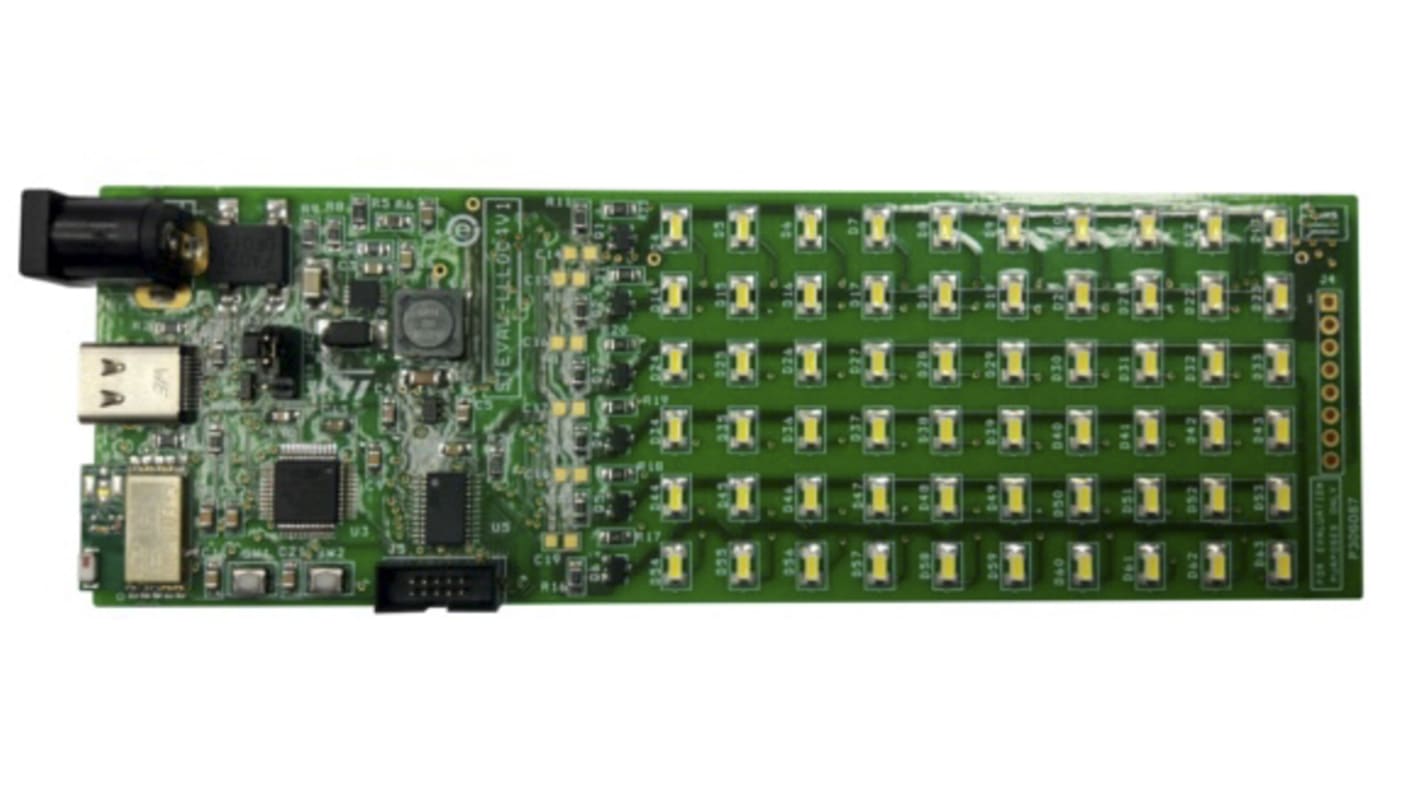

The STP16CPC26 low voltage 16-bit constant current LED sink driver on the STEVAL-LLL005V1 evaluation board ensures a cost effective 6x10 LED matrix with individual LED control. The LED driver evaluation board includes a jumper to select between powering the board through a standard DC jack input or a USB Type-C connector, as well as two control switches. An Android app is also available for enhanced user experience and control. The SPBTLE-RF very low power module for Bluetooth Smart v4.1 allows communication with the board via your smartphone. The STM32F030 mainstream ARM Cortex-M0 Value line MCU with 64 Kbytes of Flash, 48 MHz CPU manages driving and transmission of data over BLE.
Cost effective 16-bit LED driving scheme
Driver for 6x10 LED matrix with individual LED control and row-wise scanning
USB Type-C and DC jack connector for DC input power
Bluetooth Smart connectivity and Android application for hassle free demonstration
Connector for stacking multiple LED drivers in daisy chain configuration
Preconfigured demos (selected through on-board switches):
with brightness control
with speed control
with blink rate (flashing) control
Driver for 6x10 LED matrix with individual LED control and row-wise scanning
USB Type-C and DC jack connector for DC input power
Bluetooth Smart connectivity and Android application for hassle free demonstration
Connector for stacking multiple LED drivers in daisy chain configuration
Preconfigured demos (selected through on-board switches):
with brightness control
with speed control
with blink rate (flashing) control
Especificações
Atributo | Valor |
---|---|
Clasificación del kit | Placa de evaluación |
Para Usar Con | Bluetooth Low Energy and Android App |
Dispositivo mostrado | STP16CPC26 |
Nombre del kit | 60 LED (6 x 10) Cost-Effective Matrix Display |
