- Código RS:
- 185-0182
- Referência do fabricante:
- BD3378MUV-ME2
- Fabricante:
- ROHM
Produto Descatalogado
- Código RS:
- 185-0182
- Referência do fabricante:
- BD3378MUV-ME2
- Fabricante:
- ROHM
Documentação Técnica
Legislação e Conformidade
- COO (País de Origem):
- DE
Detalhes do produto
Uses 3.3V/5.0V SPI Protocol in Communicating with the MCU
Serial Communication Error Checking through 8bit-CRC
Thermal Shutdown Protection (TSD)
Power on Reset (POR)
Selectable Source/Sink Current Levels through Register Settings
Wetting Current Timer Capability
8 Source or Sink Input Pins (VPUA)
14 Source Input Pins
Separable Power Supply VPUA: 16ch (INA&INZ), VPUB: 6ch (INB)
Interrupt Notification upon Switch Status Change
1 Time to 6 Times Matched LPF that Eliminates Input Pin Noise
Low Current Consumption (Intermittent Monitoring)
Status Display of Selected Pin at DMUX Pin
Serial Communication Error Checking through 8bit-CRC
Thermal Shutdown Protection (TSD)
Power on Reset (POR)
Selectable Source/Sink Current Levels through Register Settings
Wetting Current Timer Capability
8 Source or Sink Input Pins (VPUA)
14 Source Input Pins
Separable Power Supply VPUA: 16ch (INA&INZ), VPUB: 6ch (INB)
Interrupt Notification upon Switch Status Change
1 Time to 6 Times Matched LPF that Eliminates Input Pin Noise
Low Current Consumption (Intermittent Monitoring)
Status Display of Selected Pin at DMUX Pin
Especificações
Atributo | Valor |
---|---|
Número de Canales por Chip | 1 |
Rango de Tensión de Alimentación de Funcionamiento | 6 → 28 V |

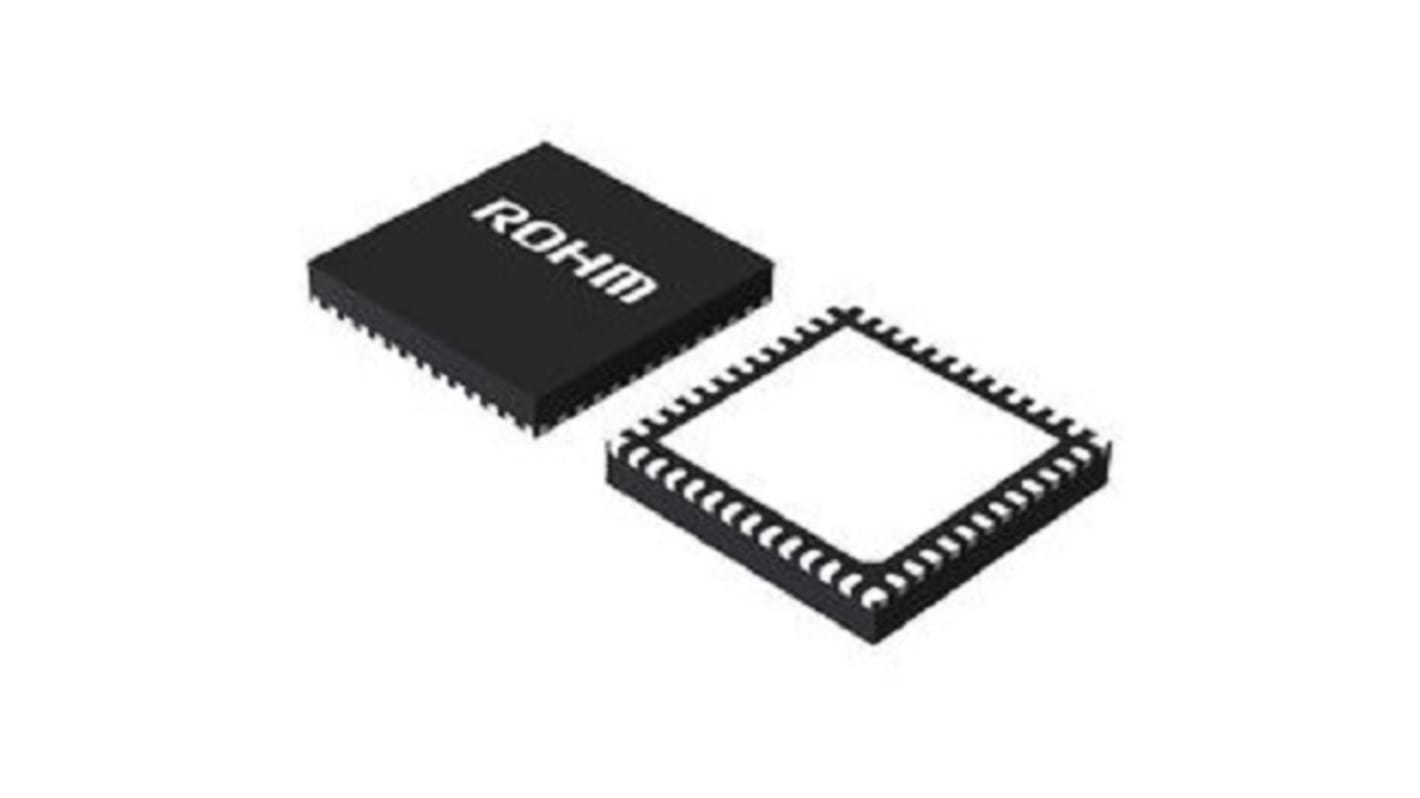

Tipo de Encapsulado | VQFN48MCV070 |
Conteo de Pines | 48 |
Tipo de Montaje | Montaje superficial |
Dimensiones | 7 x 7 x 0.98mm |
Longitud | 7mm |
Ancho | 7mm |
Altura | 0.98mm |
Tensión de Alimentación Máxima de Funcionamiento | 28 V |
Temperatura Máxima de Funcionamiento | +125 °C |
Estándar de automoción | AEC-Q100 |
Rango de Temperatura de Funcionamiento | -40 → +125 °C |
Tensión de Alimentación de Funcionamiento Mínima | 6 V |
Temperatura de Funcionamiento Mínima | -40 °C |
