- Código RS:
- 180-9304
- Referência do fabricante:
- EZ165
- Fabricante:
- Martindale
- Código RS:
- 180-9304
- Referência do fabricante:
- EZ165
- Fabricante:
- Martindale
Documentação Técnica
Legislação e Conformidade
Estado RoHS: Não aplicável
- COO (País de Origem):
- PH
Detalhes do produto

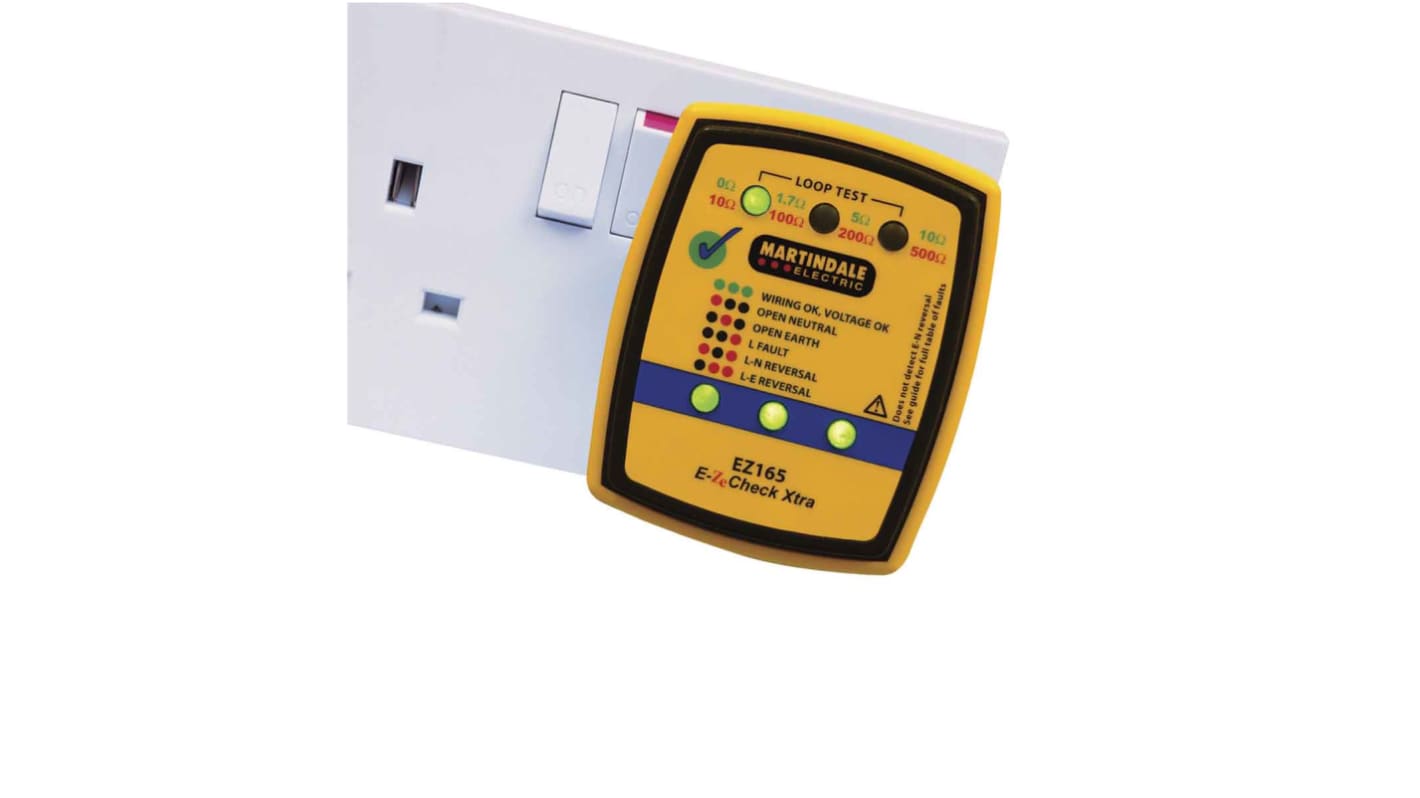

Martindale Socket and Earth Loop Tester
The Martindale socket and earth loop tester detect 28 faulty conditions and voltage level indication. It has a nominal operating voltage rating of 230V and current rating of 32A. This shows how safe the earth wiring is by carrying out a non-trip earth loop test. It is one of the most advanced socket testers as defined by health and safety executives.
Features and Benefits
Quick and easy mains socket polarity and earth testing
Red/green LED indication for fault
Non-trip earth loop impedance test
Tough sculpted design for easy removal
Earth loop threshold accuracy: ±(10% + 0.3:)
Power consumption: <2.5W
Operating temperature ranges between -10°C and 40°C
Red/green LED indication for fault
Non-trip earth loop impedance test
Tough sculpted design for easy removal
Earth loop threshold accuracy: ±(10% + 0.3:)
Power consumption: <2.5W
Operating temperature ranges between -10°C and 40°C
Certifications
EN 61010-1
Especificações
Atributo | Valor |
---|---|
Corriente Nominal | 13A |
Tensión | 230V ac |
Calibrado | RSCAL |
Prueba de Impedancia de Lazo de Tierra | Sí |
Categoría de Seguridad | Cat II 300 V |
Potencia de la Fuente | Alimentación |
Dimensiones | 80 x 45 x 65mm |
Peso | 95g |
Altura | 65mm |
Longitud | 80mm |
Anchura | 45mm |
Nivel de Categoria de Seguridad | CAT II |
Tensión de Categoria de Seguridad | 300V |
Temperatura Máxima de Funcionamiento | +40°C |
Temperatura Mínima de Funcionamiento | -10°C |
