- Código RS:
- 189-2104
- Referência do fabricante:
- STG719STR
- Fabricante:
- STMicroelectronics
De momento não é possível confirmar a disponibilidade de stock online. Por favor, entre em contacto connosco: 800 102 037
Adicionado
Preço unitário (Fornecido em múltiplos de 25)
0,993 €
Unidades | Por unidade | Por Pack* |
25 - 75 | 0,993 € | 24,825 € |
100 - 975 | 0,966 € | 24,15 € |
1000 - 2975 | 0,94 € | 23,50 € |
3000 - 8975 | 0,915 € | 22,875 € |
9000 + | 0,894 € | 22,35 € |
*preço indicativo |
- Código RS:
- 189-2104
- Referência do fabricante:
- STG719STR
- Fabricante:
- STMicroelectronics
Documentação Técnica
Legislação e Conformidade
Detalhes do produto
The STG719 is a high-speed SPDT (single pole double throw) switch fabricated in silicon gate C2MOS technology. It is designed to operate from 1.8 V to 5.5 V, making this device ideal for portable applications, audio signal routing, video switching, mobile, and communication systems. It offers 4 Ω ON-resistance max at 5 V, 25 °C and very low ON-resistance flatness. Additional key features include a fast switching speed (tON = 7 ns and tOFF = 4.5 ns), break before make delay time, and low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage. It is available in the commercial and extended temperature range.
High speed:
tPD = 0.3 ns (typ.) at VCC = 5 V
tPD = 0.4 ns (typ.) at VCC = 3.3 V
Low power dissipation:
ICC = 1 μA (max.) at TA = 25 °C
Low "ON" resistance:
RON = 4 Ω (max. TA = 25 °C) at VCC = 5 V
RON = 6 Ω (typ.) at VCC = 3 V
Wide operating voltage range:
VCC (opr) = 1.8 V to 5.5 V single supply
tPD = 0.3 ns (typ.) at VCC = 5 V
tPD = 0.4 ns (typ.) at VCC = 3.3 V
Low power dissipation:
ICC = 1 μA (max.) at TA = 25 °C
Low "ON" resistance:
RON = 4 Ω (max. TA = 25 °C) at VCC = 5 V
RON = 6 Ω (typ.) at VCC = 3 V
Wide operating voltage range:
VCC (opr) = 1.8 V to 5.5 V single supply
Especificações
Atributo | Valor |
---|---|
Conteo de Pines | 6 |
Número de Elementos por Chip | 1 |
Tipo de Salida | Terminación Única |
Tipo de Montaje | Montaje superficial |

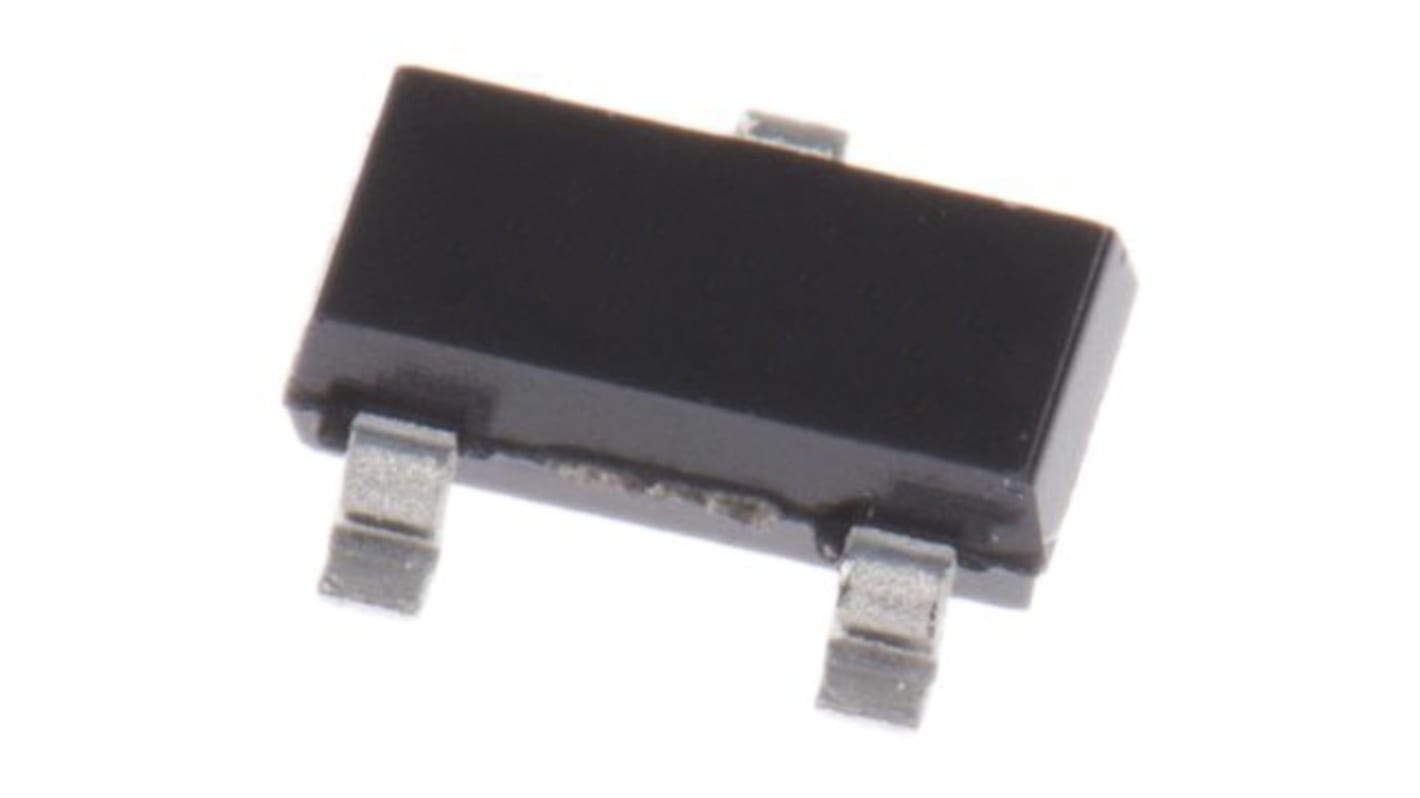

Tipo de Encapsulado | SOT-23 |
Dimensiones | 3 x 1.75 x 1.3mm |
Temperatura Máxima de Funcionamiento | +125 °C |
Temperatura de Funcionamiento Mínima | -55 °C |
