- Código RS:
- 176-6682
- Fabricante:
- RS PRO
Temporariamente fora de stock. Disponível a 30/04/2024, com entrega em 4 dia(s) útil(eis).
Adicionado
Preço unitário
385,04 €
Unidades | Por unidade |
1 - 4 | 385,04 € |
5 - 9 | 377,34 € |
10 + | 369,64 € |
- Código RS:
- 176-6682
- Fabricante:
- RS PRO
Documentação Técnica
Legislação e Conformidade
Estado RoHS: Não aplicável
- COO (País de Origem):
- TW
Detalhes do produto

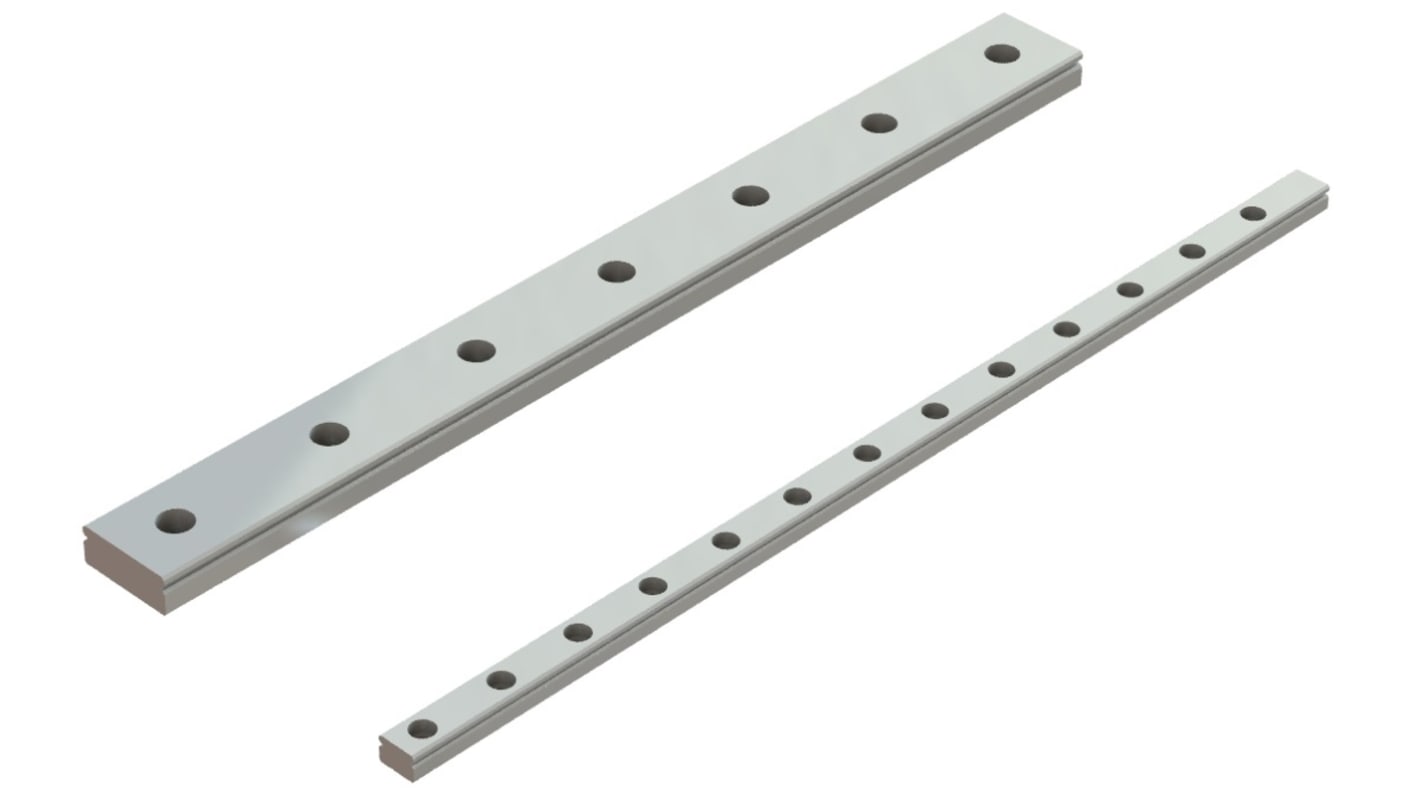

RS PRO Linear Guide Rail
The RS PRO miniature linear guide ways with rail is 1000mm in length. All materials for block and rail, including rolling balls and ball retainers, are stainless steel for anti-corrosion purpose. It can sustain load from all the directions and offers high rigidity and accuracy. Recirculating steel balls are held in by a retainer to avoid balls from falling out, even when the blocks are removed from the rail installation.
Features and Benefits
• Unique design
• High accuracy
• Lightweight
• High accuracy
• Lightweight
Applications
• Suitable for miniature equipment
• Linear rails are the backbone of many industrial applications
• Linear rails are the backbone of many industrial applications
Especificações
Atributo | Valor |
---|---|
Anchura del Raíl | 15mm |
Longitud del Raíl | 1000mm |
Material | Acero inoxidable X65Cr13 |
Valor Nominal de Carga Dinámico | 4610N |
Valor Nominal de Carga Estática | 5590N |
